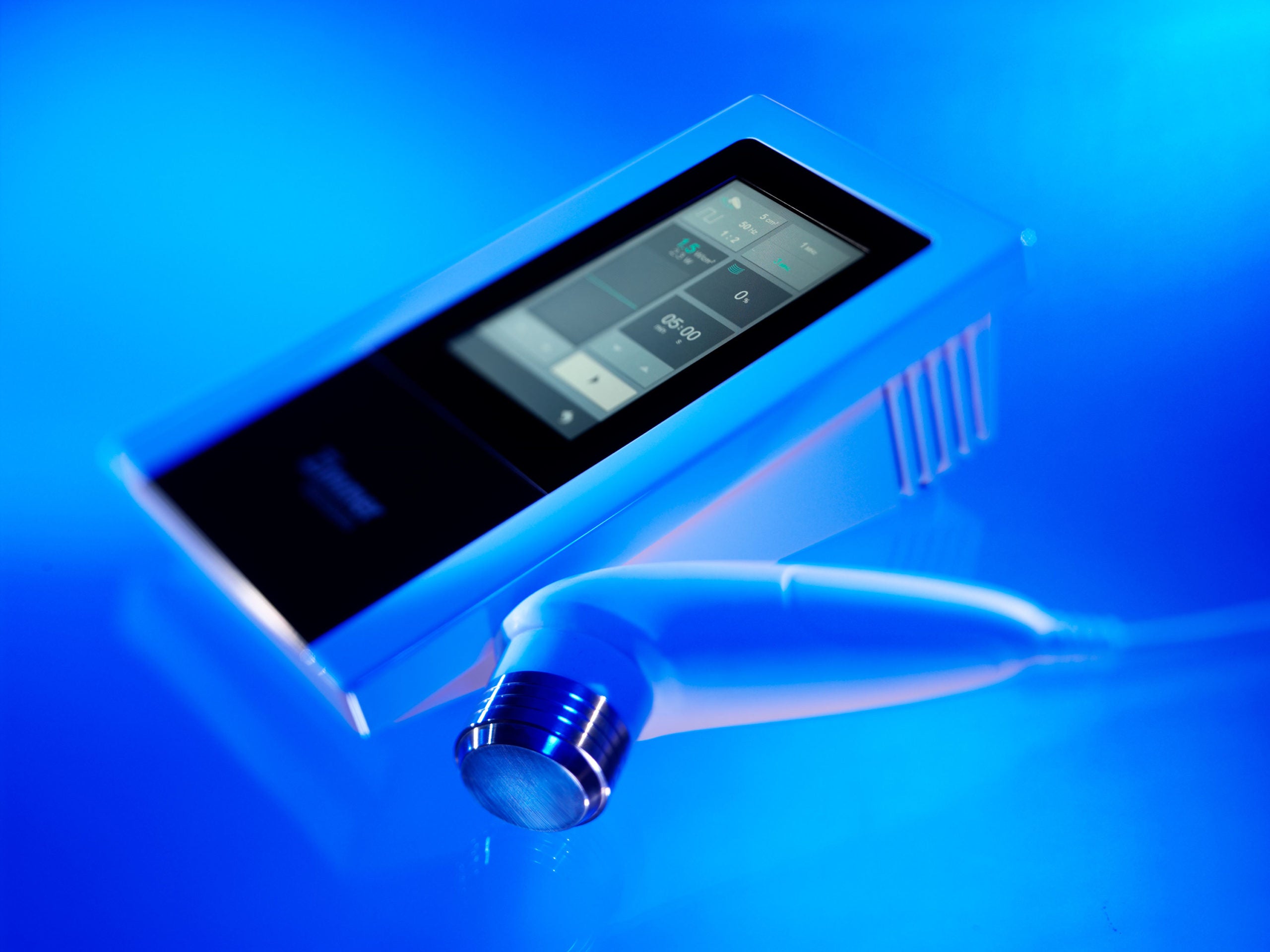

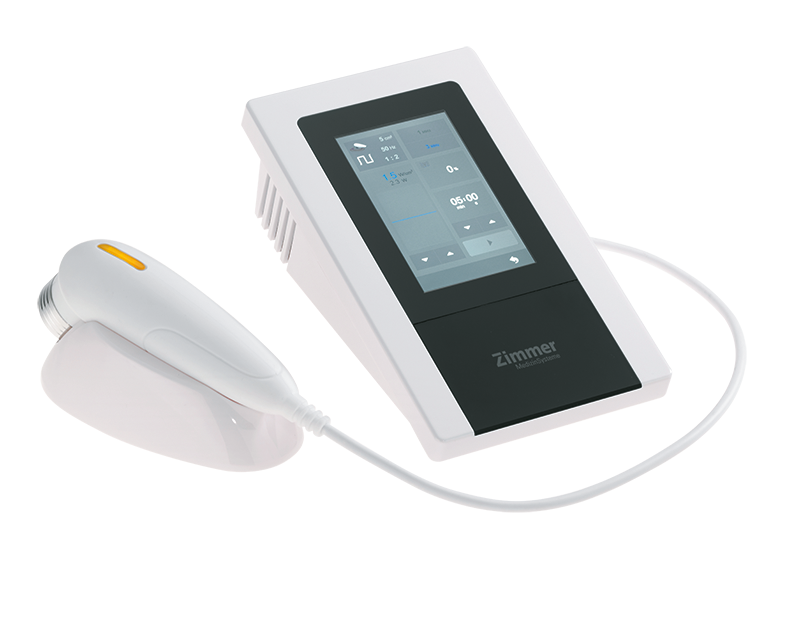

SonoOne ultrasound unit (Made in Germany)

The SonoOne ultrasound unit by Zimmer MedizinSysteme is a compact, portable device designed for ultrasound therapy, particularly useful in treating chronic and degenerative conditions of the musculoskeletal system. Here are some key features and specifications of the SonoOne:

1. Portability and Ergonomics: The SonoOne is lightweight (1 kg) and has compact dimensions (23.8 cm x 13.8 cm x 9.5 cm), making it ideal for mobile use. It is designed to be ergonomic and easy to handle, which is beneficial for both clinical and field settings.

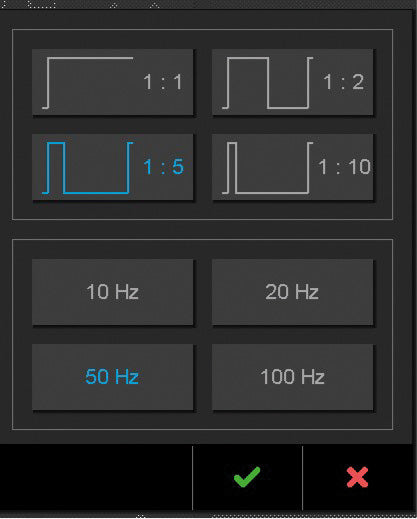

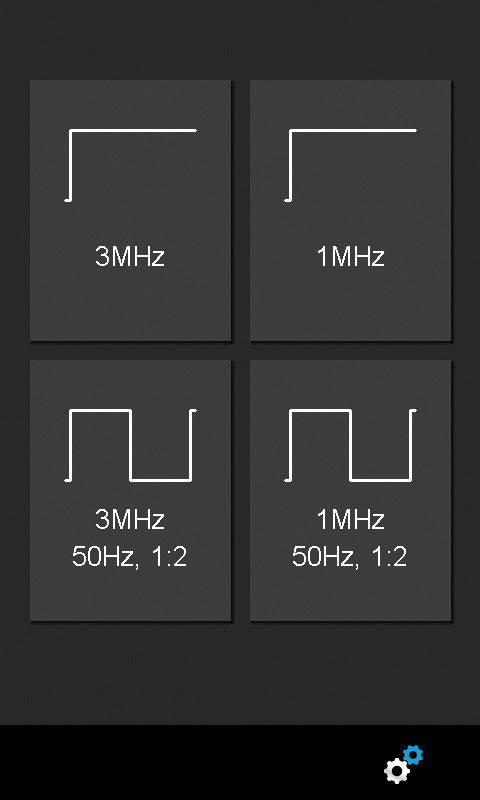

2. Ultrasound Frequencies and Modes: The device operates at 1 MHz and 3 MHz frequencies, and it offers both continuous and pulsed ultrasound emission. The pulsed ultrasound can be adjusted to different pulse frequencies (10 Hz, 20 Hz, 50 Hz, 100 Hz) and duty cycles (1:1, 1:2, 1:5, 1:10).

3. Intensity Levels: The SonoOne provides a range of intensity levels from 0.1 W/cm² to 3 W/cm², allowing for precise control over the treatment intensity.

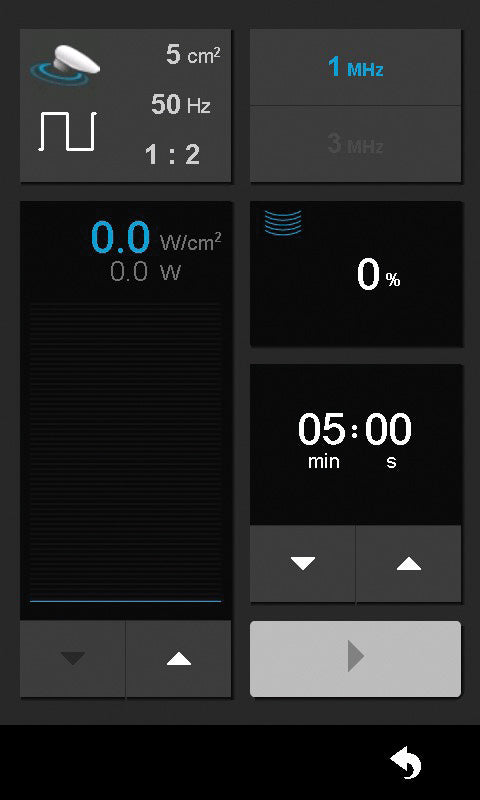

4. Ease of Use: The device features an intuitive color touchscreen for easy operation, ensuring a user-friendly experience for therapists.

5. Applications: It is particularly effective in treating conditions related to chronic inflammation and degenerative diseases of the musculoskeletal system, offering versatile treatment options through its adjustable setting

Technical data
